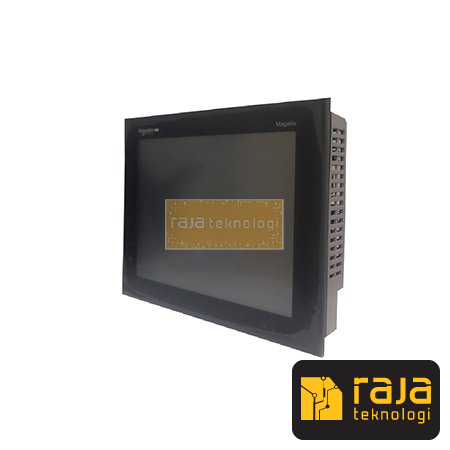

advanced touchscreen panel 640 x 480 pixels VGA- 10.4" TFT - 96 MB
Main
| Range of product | Harmony GTO |
| Product or component type | Advanced touchscreen panel |
| Display colour | 65536 colours |
| Display size | 10.4 inch |
| Supply | External source |
| Operating system | Harmony |
| Battery type | Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 day(s), battery life = 10 year(s) |
Complementary
| Terminal type | Touchscreen display |
| Display type | Backlit colour TFT LCD |
| Display resolution | 640 x 480 pixels VGA |
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Resistive film, 1000000 cycles |
| Backlight lifespan | 50000 hours white at 25 °C |
| Brightness | 16 levels - control by touch panel 16 levels - control by software |
| Character font | Chinese (simplified Chinese) Japanese (ANK, Kanji) Korean ASCII Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…28.8 V |
| Inrush current | 30 A |
advanced touchscreen panel 640 x 480 pixels VGA- 10.4" TFT - 96 MB
Main
| Range of product | Harmony GTO |
| Product or component type | Advanced touchscreen panel |
| Display colour | 65536 colours |
| Display size | 10.4 inch |
| Supply | External source |
| Operating system | Harmony |
| Battery type | Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 day(s), battery life = 10 year(s) |
Complementary
| Terminal type | Touchscreen display |
| Display type | Backlit colour TFT LCD |
| Display resolution | 640 x 480 pixels VGA |
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Resistive film, 1000000 cycles |
| Backlight lifespan | 50000 hours white at 25 °C |
| Brightness | 16 levels - control by touch panel 16 levels - control by software |
| Character font | Chinese (simplified Chinese) Japanese (ANK, Kanji) Korean ASCII Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…28.8 V |
| Inrush current | 30 A |
