Main
| Range of product | Modicon Quantum automation platform |
| Product or component type | RIO head-end adaptor module |
Complementary
| Product compatibility | Symax (any mix) Quantum 200/500/800 series |
| Maximum drops/network | 31 |
| I/O words/drop | 64 I/64 O |
| Type of cable | 75 Ohm coaxial cable |
| Transmission rate | 1544 Mbit/s |
| Dynamic range | 35 dB |
| Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 2 female connectors F, elbowed with redundant cable |
| Diagnostics startup | Memory check LAN controller check Power up |
| Power dissipation in W | 3 W 2 channels |
| Marking | CE |
| Bus current requirement | 750 mA 2 channels |
| Module format | Standard |
Environment
| Product certifications | FM Class 1 Division 2 |
| Standards | UL 508 CSA C22.2 No 142 CUL |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80…1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |

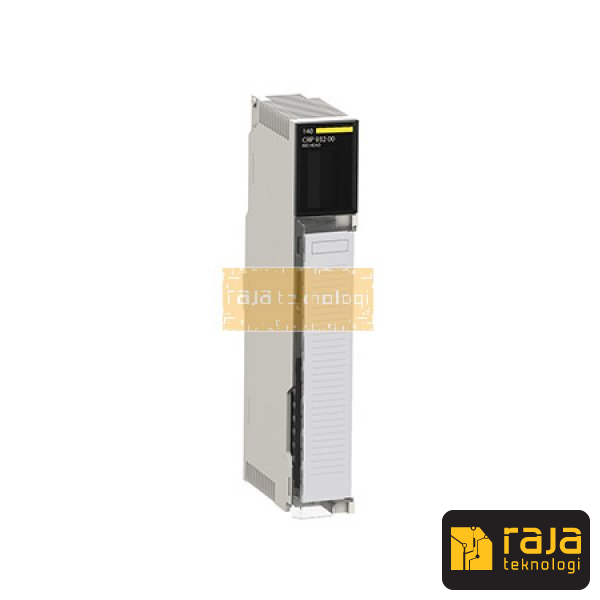

RIO HEAD S908 2CH
