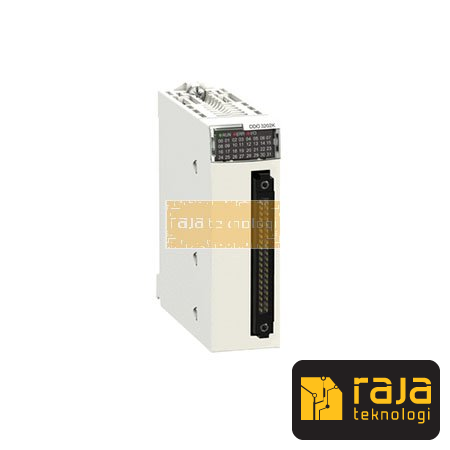

| Range of product | Modicon X80 |
| Product or component type | Discrete output module |
| Discrete output number | 16 conforming to EN/IEC 61131-2 |
| Discrete output logic | Positive |
| Discrete output voltage | 24 V 19...30 V DC |
| Discrete output current | 0.5 A |
| Output compatibility | Not IEC 61131-2 DC input IEC 61131-2 type 3 DC input |
Complementary
| Current per channel | 0.625 A |
| Maximum current per module | 10 A |
| Maximum leakage current | 0.5 mA at state 0 |
| [Ures] residual voltage | 1.2 V at state 1 |
| Insulation resistance | > 10 MOhm 500 V DC |
| Maximum power dissipation in W | 4 W |
| Response time on output | 1.2 ms |
| Paralleling of outputs | Yes : 2 maximum |
| Typical current consumption | 79 mA at 3.3 V DC |
| MTBF reliability | 392285 H |
| Protection type | Reverse polarity protection External short-circuit protection Overload protection Overvoltage protection |
| Output overload protection | With electronic circuit breaker 1.5 In < Id < 2 In With current limiter |
| Output overvoltage protection | With transil diode |
| Output short-circuit protection | With 2 A external fuse |
| Reverse polarity protection | Reverse mounted diode |
| Voltage detection threshold | < 14 V DC preactuator fault > 18 V DC preactuator at state 0 |
| Maximum tungsten load | 6 W |
| Switching frequency | 0.5/LI² Hz |
| Load impedance ohmic | > 48 Ohm |
| Status LED | 1 LED (green)module operating (RUN): 1 LED per channel (green)channel diagnostic: 1 LED (red)module error (ERR): 1 LED (red)module I/O: |
