Specifications IS335 (PIR)
Range 40' x 56'
Power 9.0 - 15 VDC; 7 mA typical, 12 mA maximum; AC Ripple: 3 V peak-to-peak at nominal 12 VDC
Alarm Relay Energized Form A; 90 mA, 15 VDC, 22 Ohms resistance maximum. Alarm Relay Duration: 3 seconds
RFI Immunity 20V/m 10-1000 MHz, 15V/m 1000-2700 MHz
PIR White Light Immunity 2,000 Lux typical
Operating Temperature 14°F to 131°F/-10°C to 55°C
Relative Humidity 5 to 93%; non-condensing
Temperature Compensation Advanced Dual Slope
Dimensions 3.39" H x 2.24" W x 1.71" D/8.6 cm H x 5.7 cm W x 4.35 cm D

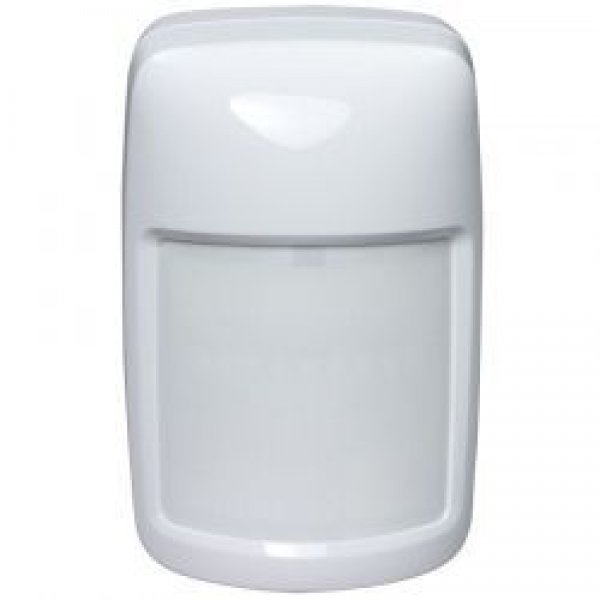

Ideal for all residential applications, Honeywell’s IS335 Motion Detector delivers exceptional value and performance while reducing false alarms. Installations are quick and easy— saving you time and money. The IS335 features selectable
pet immunity for animals weighing up to 80 lbs, an always-enabled LED, 40 x 56 range and a style that blends with any décor.
