Image Sensor 1/2.8 CMOS Number of Pixels (H x V) 1920 x 1080 Electronic Shutter 1/25s ~ 1/ 100000s Iris Fixed Iris Min Illumination 0.1 lux @F1.2, AGC ON; 0 lux with IR
Lens
3.6 mm @F1.6, Angle of View: 79 deg
2.8 - 12 mm @F1.4, Angle of View: 96 deg ~ 35 deg Day & Night TDN Wide Dynamic Range Digital WDR IMAGE Video Compression H.264 / MJPEG Compression Standard Baseline / Main / High Profile Resolution 1080p, 720p, D1, CIF Number of Streams 3 (main stream ,sub stream ,third stream)
Resolution
Main stream: 1920 x 1080, 1280 x 720 Sub stream: 704 x 576 , 352 x 288 Third stream: 704 x 576 , 480 x 240 , 352 x 288
Bit Rate
Main stream: 1024 ~ 6144 Kbps Sub stream: 256 ~ 1536 Kbps Third stream: 128 ~ 1024 Kbps Encode Mode CBR / VBR (Freely adjustable in CBR, 5 levels in VBR)
Image Settings
ROI, Saturation, Brightness, Contrast, Wide Dynamic, Sharpen, Noise reduction ROI 3 ROI INTERFACES Network RJ45 FUNCTIONS Remote Monitoring IE / Firefox Browsing, CMS control
Online Connection
Simultaneous monitoring for upto 3 users; support multi-stream real time transmission Network Protocol TCP/IP, UDP, DHCP, NTP, RTSP, DDNS, SMTP, FTP, HTTPS Interface Protocol ONVIF S, ONVIF G Motion Alarm Supported IR Distance 10 - 20 m 20 - 30m IP Rating IP66

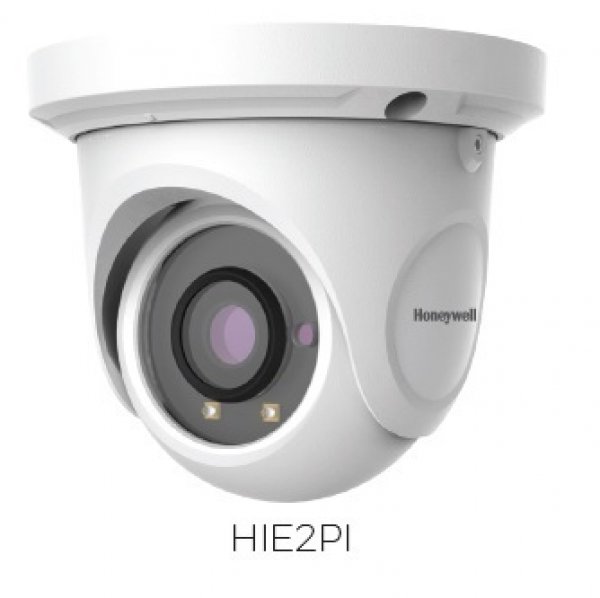

Honeywell’s new Performance Lite IP camera series is aimed to provide high quality surveillance as an affordable offering for the small and medium businesses including small retail shops, gyms, schools, residential homes, etc.
The new series includes 2MP IR cameras in both eyeball and bullet configurations with fixed and variable lens options to cater to all kinds of customer applications. The cameras come with IR LEDs so as to provide effective and efficient surveillance even during the night time. The cameras are IP66 rated that makes them resilient for outdoor applications as well.
