MAIN PROCESSOR Quad-core embedded processor OPERATINg SYSTEM Embedded LINUX VIDEO
INPuTS
HEN08104: 8 Channels IP HEN16104: 16 Channels IP HEN32104: 32 Channels IP
AuDIO
AuDIO INPuT/OuTPuT
1 Channel Input/1 Channel Output, RCA TwO-wAY COMMuNICATION Supported DISPlAY
INTERfACE
1 HDMI (up to 3840 × 2160); 1 VGA
RESOluTION
3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720; 1024 × 768
DISPlAY SPlIT
HEN08104: 1/4/8/9 HEN16104: 1/4/8/9/16 HEN32104: 1/4/8/9/16/25/36
OSD
Camera title; Time; Video loss; Camera lock; Motion detection; Recording
fISHEYE VIDEO DE-wARPINg
Supported in local and web user interface
RECORDINg COMPRESSION H.265/H.264/MJPEG/MPEG4
RESOluTION
12 MP (4000 × 3000); 8 MP (3840 × 2160); 6 MP (3072 × 2048); 5 MP (2560 × 1920); 4 MP (2560 × 1440); 3 MP (2048 × 1520); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576 / 704 × 480); CIf (352 × 288 / 352 × 240) fRAME RATE 1–15 fps (12 MP and 8 MP); 1–25/30 fps (rest of the resolutions) RECORD bIT RATE 320 Mbps bIT RATE1 16 kbps ~ 20 Mbps, per channel
RECORDINg MODE
Schedule (Regular/Continuous, Motion Detection, Alarm); Manual; Stop RECORDINg INTERVAl 1 to 120 minutes (default 60 min) PRE-EVENT RECORDINg INTERVAl 1 to 30 seconds POST-EVENT RECORDINg INTERVAl 10 to 300 seconds VIDEO DETECTION AND AlARMS
TRIggER EVENTS
Recording; PTZ; Tour; Alarm; Video Push; Email; FTP; Snapshot; Buzzer
VIDEO DETECTION
Motion Detection—MD Zones: 396 (22 × 18); Video Loss; Camera Blank AlARM INPuT 4 Channels RElAY OuTPuT 2 Channels STORAgE INTERNAl HDD 2 SATA ports, up to 16 TB
PlAYbACk AND bACkuP
SYNC PlAYbACk
1/4/8/16 (maximum 4-ch @ 8 MP, 8-ch @ 4 MP, or 16-ch @ 1080p simultaneous playback)
SEARCH MODE
Time/Date; Alarm; Motion Detection (MD); Exact Search (accurate to a second); Smart Search
PlAYbACk fuNCTION
Play; Pause; Stop; Rewind; Fast play; Slow play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup selection; Digital Zoom
bACkuP MODE COMPATIbIlITY
USB Device; Network; Internal SATA burner
NETwORk ETHERNET 1 RJ-45 port (10/100/1000 Mbps)
POE
HEN08104: 8 ports (802.3af/at) HEN16104: 16 ports (802.3af/at) HEN32104: 16 ports (802.3af/at)
SuPPORTED PROTOCOlS2
HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, P2P MAxIMuM NuMbER Of uSERS 128 users NETwORk THROugHPuT Input 320 Mbps; Output 320 Mbps SMART PHONE COMPATIbIlITY iPhone; iPad; Android AuxIlIARY INTERfACE uSb PORTS 2 (1 rear USB3.0; 1 front USB2.0)
RS232
1 port (for PC communications and keyboard)
ElECTRICAl POwER SuPPlY Single, 100~240 VAC, 50/60 Hz
POwER CONSuMPTION
HEN08104: 15.2 W max (no HDD) HEN16104: 14.5 W max (no HDD) HEN32104: 14.5 W max (no HDD) PoE: 25.5 W for a single port (130 W total)
ENVIRONMENTAl OPERATINg TEMPERATuRE 14°F to 131°F (–10°C to 55°C) RElATIVE HuMIDITY 10% to 90%, non-condensing
STORAgE TEMPERATuRE
–4°F to 158°F (–20°C to 70°C), 0% to 90% relative humidity
PHYSICAl
DIMENSIONS
14.8" × 12.9" × 2.1" (375 mm × 327 mm × 53 mm) wEIgHT (wITHOuT HDD) 6.0 lb. (2.7 kg) REgulATORY
EMISSIONS
FCC Part 15B, EN55032: 2012 +AC: 2013, EN61000-3-2: 2014, EN61000-3-3: 2013
IMMuNITY
EN50130-4: 2011+A1: 2014, EN55024: 2010+A1: 2015
SAfETY
EU: EN60950-1 North America UL listed to UL/CSA 60950-1 ROHS EN50581: 2012

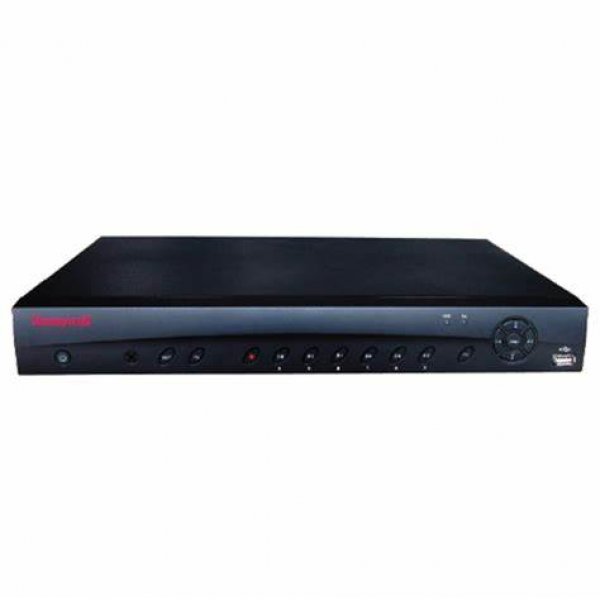

introducing Honeywell’s Focus 4K embedded NVrs, our newest affordable, fully featured NVrs offering ultra HD 4K video resolution. Choose an 8-, 16-, or 32-channel NVr, with multiple hard drive options plus the ability to expand to up to 16 tB of internal storage, for an ideal and flexible solution to fit your surveillance situation.
Fully-featured NVRs • High decoding capability for ultra 4K HD viewing and recording
• View 4/8/16 channels simultaneously with synchronized real-time playback on your monitor (depending on your model)
• up to 12 MP (4K) resolution live view, preview and playback
• up to 16 channels at 1080p H.265/H.264 decoding
• De-warp fisheye camera video in local and web user interface for 360 degree situational awareness
Dynamic, Accessible Monitoring • Monitor from anywhere using the mobile apps for both apple® and android™ devices (smartphones, tablet computers, and laptops)
• Protect the NVr's video and network setup with password- protected access
• Conceal up to 4 areas of a scene from viewing and recording
Convenient, Flexible Storage Options • internal storage supports 2 HDDs expandable up to 16 tB (8 tB each)
• store video clips and snapshots to external storage, such as the client’s PC, through the internet connection
• store video clips and snapshots to external network storage servers, such as an FtP site
• store video clips and snapshots to a usB memory device
