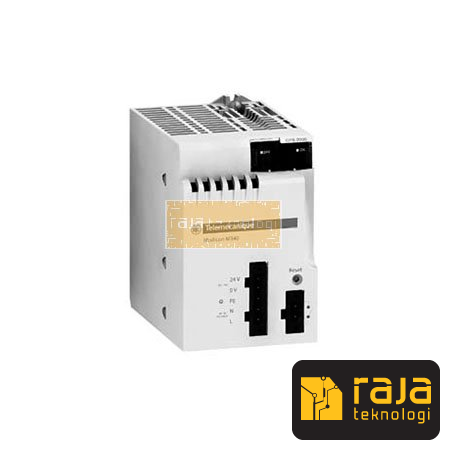

Main
| Range of product | Modicon X80 |
| Product or component type | Power supply module |
| Backplane compatibility | Not compatible with BMEXBP..02 |
| Primary voltage | 24 V isolated |
| Supply circuit type | DC |
| Secondary power | 16.8 W 24 V DC I/O module power supply and processor 8.3 W 3.3 V DC I/O module logic power supply |
Complementary
| Primary voltage limit | 18...31.2 V |
| Input current | 1 A 24 V |
| Inrush current | 30 A 24 V |
| I²t on activation | 0.6 A².s 24 V |
| It on activation | 0.15 A.s 24 V |
| Protection type | Internal fuse not accessible for primary circuit Overload protection for secondary circuit, 24 V sensor power supply Overvoltage protection for secondary circuit, 24 V sensor power supply Short-circuit protection for secondary circuit, 24 V sensor power supply |
| Current at secondary voltage | 0.7 A 24 V DC I/O module power supply and processor 2.5 A 3.3 V DC I/O module logic power supply |
| Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (green)rack voltage OK: |
| Control type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 pin(s)alarm relay 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor |
| Maximum cable distance between devices | 20 m power supply cable copper 1.5 mm² 30 m power supply cable copper 2.5 mm² |
| Insulation resistance | >= 10 MOhm primary/ground >= 10 MOhm primary/secondary |
STANDARD ISOL DC POWER SUPPLY
