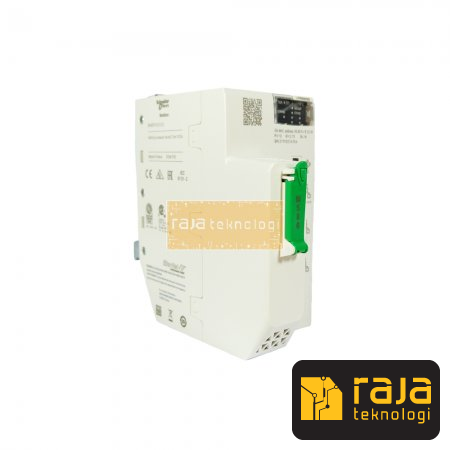

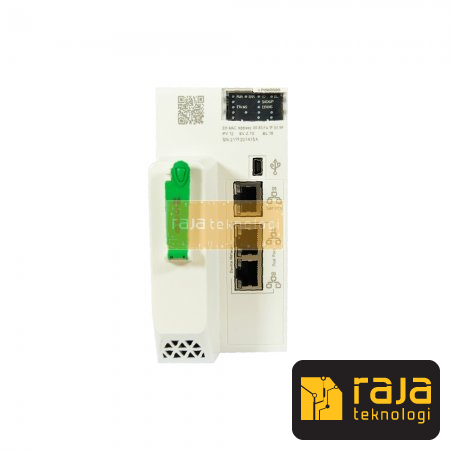

SCHNEIDER BMEP582020 processor module M580 - Level 2 - Distributed

processor module M580 - Level 2 - Distributed

Rp. 38.137.000

Condition: New

Shipping Weight: 1 kg(s)

Brand: SCHNEIDER

Share:

Main
Range of product Modicon M580
Product or component type Processor module

Complementary
Number of racks 4
Local I/O processor capacity (discrete) 2048 I/O
Local I/O processor capacity (analog) 512 I/O
Number of application specific channel (local rack) 72
Application specific I/O HART
SSI encoder
Motion control
Serial link
Accurate time stamping
Counter
Checks Process control
Control channels Programmable loops
Integrated connection type 1 Ethernet TCP/IP for service port
2 Ethernet TCP/IP for device network
USB type mini B
Number of distributed equipment 128
Communication module processor capacity 2 Ethernet communication module
8 AS-Interface module
Communication service DIO scanner
Memory description Expandable flash, 4 GB for data storage
Integrated RAM, 10 kB for system memory
Integrated RAM, 8 MB for program
Integrated RAM, 768 kB for data
Application structure 1 cyclic/periodic master task
64 event tasks
2 auxiliary tasks
1 periodic fast task
Number of instructions per ms 7.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
10 Kinst/ms 100 % Boolean
Current consumption 270 mA at 24 V DC
MTBF reliability 600000 H
Marking CE

Environment
Vibration resistance 3 gn
Shock resistance 30 gn
Ambient air temperature for operation 0…60 °C
Ambient air temperature for storage -40…85 °C
Operating altitude 0...2000 m
2000...5000 m with derating factor
Relative humidity 5…95 % at 55 °C without condensation
IP degree of protection IP20
Directives 2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2012/19/EU - WEEE directive
Standards EN 61131-2
EN 61000-6-4
EN 61000-6-2
EN 61010-2-201
Product certifications CE
EAC
Merchant Navy
RCM
CSA
UL
Supply Internal power supply via rack
Status LED 1 LED (green)processor running (RUN):
1 LED (red)processor or system fault (ERR):
1 LED (red)I/O module fault (I/O):
1 LED (green)download in progress (DL):
1 LED (red)memory card or CPU flash fault (BACKUP):
1 LED (green/red)ETH MS (Ethernet port configuration status):
1 LED (green/red)Eth NS (Ethernet network status):
Net weight 0.849 kg
processor module M580 - Level 2 - Distributed
