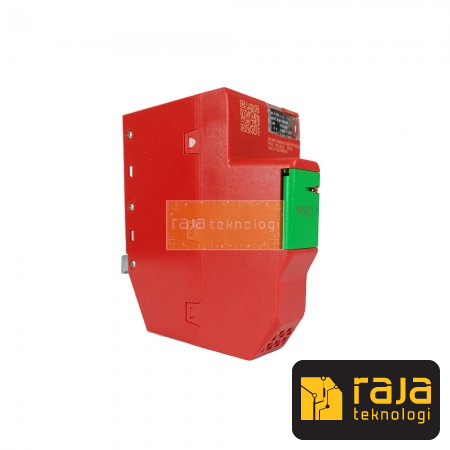

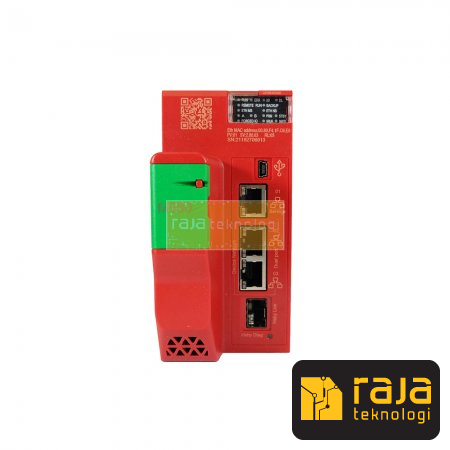

SCHNEIDER BMEH584040S Redundant HSBY processor module M580 Safety SIL3 - Level 4
Main
| Range of product | Modicon M580 |
| Product or component type | Redundant processor module |
| Impregnation material | Conformal coated |
Complementary
| Number of racks | 1 |
| Application specific I/O | Accurate time stamping Counter HART Motion control Serial link SSI encoder |
| Checks | Process control Safety control |
| Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP for service port 2 Ethernet TCP/IP for device network USB type mini B 1 Ethernet for HSBY port |
| Number of remote I/O station | 16.0 - 2 rack(s) per X80 and Quantum drops |
| Number of distributed equipment | 61.0 |
| Communication module processor capacity | 4.0 Ethernet communication module 16.0 AS-Interface module |
| Communication service | DIO scanner RIO scanner |
| Memory description | Expandable flash, 4 GB for data storage Integrated RAM, 10 kB for system memory Integrated RAM, 16 MB for program process Integrated RAM, 16 MB for data process Integrated RAM, 4 MB for program safety Integrated RAM, 1024 kB for data safety |
| Application structure | 1 master task 1 periodic fast task 1 periodic safe task |
| Number of instructions per ms | 40 Kinst/ms 100 % Boolean 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic |
| Current consumption | 295 mA at 24 V DC |
| MTBF reliability | 763800 H |
| Marking | CE |
Redundant HSBY processor module M580 Safety SIL3 - Level 4
